For most home and small-office networks, Cat5e is the sensible default, because it carries 1 Gbps over a full 100 m run. Choose Cat6 when you want headroom for 10 Gbps on shorter runs or a cabling system that must last a decade. Either category only meets its limits when it is installed correctly and tested.
TL;DR:
- Cat6 typically carries 10 Gbps for about 55 m; choose Cat6a for 10 Gbps across a full 100 m channel.
- A link performs to its weakest component, so Cat6 cable connected to Cat5e jacks or patch panels delivers Cat5e performance.
- Specify pure copper and compliance documents; cheap CCA or CCS cable can break during termination, oxidize, shorten usable runs, or develop intermittent faults.
- For ordinary indoor routes, unshielded cable is usually practical; reserve shielding for electrical noise, and require correct termination and grounding.
- Request permanent link and channel certification for every run, with recorded margins; a continuity test confirms connections but not rated performance.
Table of Contents
- Cat5e and Cat6 at a glance
- What physically separates Cat6 from Cat5e?
- How fast is each cable in practice?
- What causes interference, and how do you control it?
- Which cable should you choose for your situation?
- Which standards and tests should you demand from an installer?
- How do you decide, and what should you ask?
- Our view on cabling and testing
- Get structured cabling installed and tested by us
- FAQ
- Sources
Cat5e and Cat6 at a glance
Before the detail, here is how the two categories compare on the points that matter when you are choosing.
- Frequency: Cat5e limits are specified to 100 MHz, while Cat6 limits are specified to 250 MHz, according to IEEE cabling performance analysis. That extra bandwidth is what gives Cat6 its headroom.
- Speed and distance: Cat5e supports gigabit Ethernet to 100 m. Cat6 can carry 10 Gbps, but typically only over shorter runs, commonly cited as around 55 m depending on interference and bundle conditions.
- Conductors: Cat6 cable often uses thicker 23 AWG conductors, where Cat5e often uses 24 AWG. Thicker copper lowers attenuation.
- Twists and separators: Cat6 usually adds a tighter pair twist and an internal separator that reduces crosstalk between pairs.
- Shielding: both categories come as unshielded (UTP) cable, and shielded variants such as F/FTP and S/FTP exist for noisy environments.
- Cost and installation: Cat6 costs more per metre, is stiffer and has a larger bend radius, so it is slightly harder to pull through tight conduit and terminate neatly.
- Compatibility: Cat6 cable works with Cat5e jacks and equipment and the other way round, but a mixed channel performs to its weakest component.
If your internet connection is a gigabit service and your local file sharing is modest, Cat5e covers you. If you plan 10 Gbps links or dense bundled runs, Cat6 or Cat6a is the safer specification.

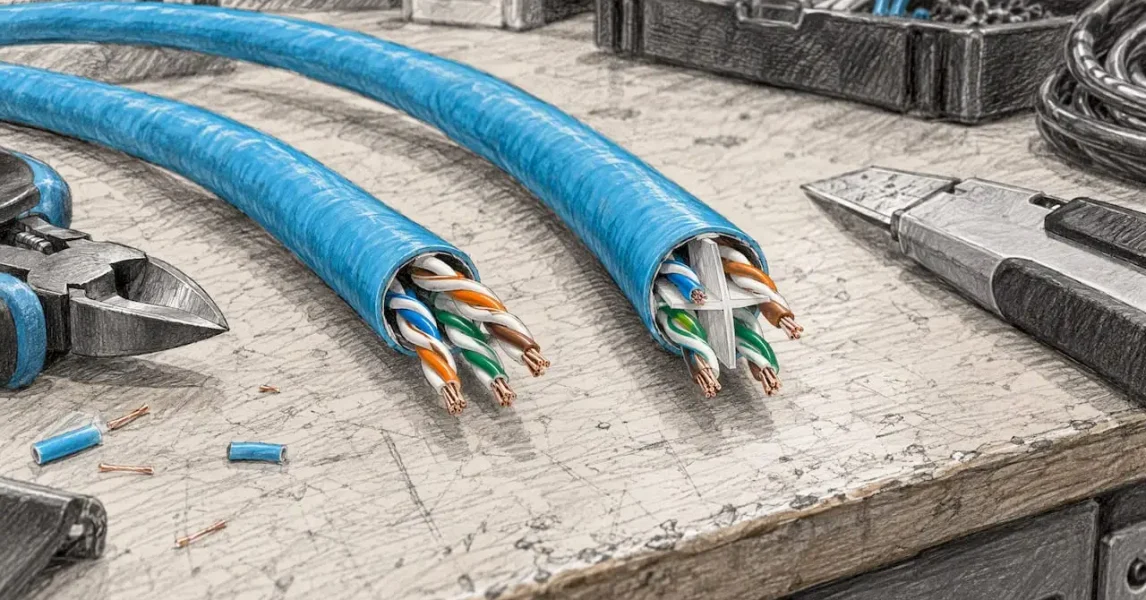

What physically separates Cat6 from Cat5e?
The headline numbers come from construction. Cat6 is built to carry a higher frequency range with more margin against interference, and several details explain how.
Conductor size and attenuation
Cat6 often uses larger conductors than Cat5e. A larger conductor cross-section reduces signal loss over distance, which is one reason Cat6 holds a clean signal at higher frequencies. NICEIC coverage in Professional Electrician notes that higher-category cables typically have larger conductor cross-sectional area and increased twist to reduce crosstalk.
Bear in mind that gauge is not a pass mark on its own. Some Cat6 products use 24 AWG and still meet the category through careful construction, and Loughborough University’s networking standards specify 24 AWG, 100 Ω solid copper for Cat6a U/FTP internal cabling. What counts is that the finished cable and channel meet the category’s performance limits, not the number printed on the drum.
Pair twist and internal separators
Every pair in an Ethernet cable is twisted so that interference induced on one wire is cancelled by its partner. Cat6 tightens those twists and often adds a plastic spline, or separator, running down the core. The separator keeps the four pairs apart, which reduces near-end crosstalk (NEXT), the interference that one pair couples into its neighbour at the transmitting end.
Lower crosstalk gives you headroom. A Cat6 channel can offer more performance margin than Cat5e, but installation quality still matters.
Shielding types
Unshielded twisted pair (UTP) is the standard choice for homes and small offices. Shielded designs add foil or braid:
- F/FTP: a foil around each pair plus an overall foil.
- S/FTP: a foil around each pair plus an overall braid, the most robust option.
- U/FTP: a foil around each pair with no overall screen, the construction Loughborough’s standards recommend for Cat6a.
Shielding is chosen where electromagnetic interference is high, such as plant rooms, lift motors or long runs sharing containment with power. It brings trade-offs: higher cost, more careful termination and the need for proper grounding. A shielded cable that is poorly bonded can perform worse than a good UTP cable.
Non-compliant conductors: CCA and CCS
Price is where this goes wrong. Copper-clad aluminium (CCA) and copper-clad steel (CCS) cables are sold cheaply as Cat5e or Cat6, but standards require pure annealed copper conductors. The Approved Cables Initiative technical article on CCA Cat 5e cable warns of termination breakage, oxidation problems and reduced usable cable length from these products.
Further constructional guidance on Category 5e cables adds that reduced-diameter or non-compliant conductors can cause low-frequency performance problems. The practical consequence is a cable that passes a quick plug-in test on day one, then fails at a punch-down or develops intermittent faults later. When you buy cable or accept a quote, specify pure copper and ask for the cable’s compliance documentation.
How fast is each cable in practice?
The specification and the real installation are two different things, and the gap between them is where most disappointment happens.
The numbers on paper
Cat5e is specified to 100 MHz and is expected to support 1 Gbps over 100 m of channel. That is the full length allowed for a structured-cabling channel, and for gigabit use it is more than enough in nearly every home and small office.
Cat6 is specified to 250 MHz. It can support 10 Gbps, but typically only over shorter runs, with around 55 m commonly cited, and the achievable distance depends on interference and how the cables are bundled. If you need 10 Gbps over the full 100 m, the usual answer is Cat6a, which is specified to a higher frequency and designed for that job. This is why Imperial College’s cabling specification states that Cat6a systems are preferred for new buildings, while the same document requires that Cat5e systems must support Ethernet, Fast Ethernet and Gigabit Ethernet.
Why real installations underperform
A cable’s category describes a complete channel, not a reel of cable. Everything in the path counts: patch leads, wall outlets, patch panel and the terminations at each end. A few common causes of lost performance:
- Poor terminations: untwisting pairs too far at a punch-down block is among the most frequent causes of failing links, because it destroys the crosstalk protection the cable was built to give.
- Mismatched components: a Cat6 cable fitted to Cat5e jacks gives you a Cat5e channel. Performance follows the weakest part.
- Bundling: tightly bundled cables couple noise into each other, which matters more as speeds rise.
- Physical damage: crushed or over-tightened cable ties and kinked bends alter the geometry of the pairs.
The Imperial specification lists installation-care details such as loom sizes and proper fixing to avoid crushing, because these small points decide whether a link meets its rating.
Why certification matters
The only way to know a run meets its category is to measure it. Channel and permanent-link certification tests the installed cabling against the standard, reporting pass or fail with measured margins. IEEE analysis shows that field testing verifies margin to specifications and examines alien crosstalk in real channels, which is why test results carry more weight than the print on the cable jacket. A simple continuity tester proves the wires are connected. It says nothing about whether the link will sustain its rated speed.
What causes interference, and how do you control it?
Noise in a cable falls into a few distinct types, and each has a different cure.
NEXT, ELFEXT and alien crosstalk
- NEXT (near-end crosstalk): signal from one pair leaking into another at the same end of the link.
- ELFEXT (equal-level far-end crosstalk): the same coupling measured at the far end, adjusted for the signal loss along the cable.
- Alien crosstalk: interference coupled between neighbouring cables rather than between pairs in the same cable. It cannot be removed by the cable’s internal design, which is why bundling and routing matter.
Cat6 has different margin expectations from Cat5e because it is designed to operate at 250 MHz instead of 100 MHz, with tighter limits on crosstalk across that wider range. The IEEE material on copper cabling performance discusses alien crosstalk testing for exactly this reason: at higher speeds, neighbouring cables become a significant source of noise.
When shielding earns its cost
Shielded cable is worth considering in high-EMI environments and in long bundled runs where alien crosstalk is a risk. The trade-offs are higher material cost, more demanding terminations and the need for correct grounding. For a typical home or open-plan office with short runs, well-installed UTP is usually the more practical choice.
Installer practices that reduce risk
Good routing prevents more problems than any cable upgrade. We follow these habits on every job:
- limit the size of cable bundles, and avoid pulling a large loom tight against its neighbours;
- keep data cabling separated from power cables;
- fix cables without crushing them, and avoid over-tightened ties;
- respect the minimum bend radius, which network infrastructure awareness guidance also covers alongside weather resistance for external runs.
PoE and heat in bundles
Power over Ethernet sends power down the same pairs as data. In large bundled runs, that current warms the cable, and heat raises attenuation. Dense deployments of PoE cameras or access points are where this shows up first, so power delivery should be verified through testing and the bundle sizes kept sensible. Thicker conductors help here, because lower resistance means less heat for the same current.
Which cable should you choose for your situation?
Match the cable to the workload and to how long it will stay in the wall.
When Cat5e is enough
Cat5e is acceptable when you have a single-gigabit internet connection, modest local file sharing and short runs, which describes most homes. A streaming and gaming household on gigabit broadband will not see a measurable benefit from Cat6, because the link speed is the same 1 Gbps and latency is unaffected by the cable category. If you are asking which is the better ethernet cable for gaming, the honest answer is that a properly terminated cable of either category delivers the same gigabit experience, so the quality of installation matters more than the category.
When Cat6 or Cat6a is the better call
Choose Cat6, or Cat6a where runs are long, in these cases:
- you need higher-speed links between a server, a switch or a workstation;
- you are building a server room or a patch panel serving many outlets;
- cables will be tightly bundled over long distances;
- you want the installation to stay relevant for many years.
Scenarios side by side
A small office with a local file server and several users editing large files may benefit from a higher-speed link between the server and the switch, so a Cat6 or Cat6a backbone can make sense even if desktop drops stay at gigabit. A PoE camera or access-point deployment benefits from the larger conductors and lower heat build-up of Cat6 in bundled routes. A typical family home with a router and a few wired devices gains little from the upgrade.
A simple rule of thumb
If the cabling will stay in place for many years, or you need higher-speed links locally, favour Cat6 or Cat6a. Cabling is the most disruptive part of a network to change, because it sits in walls and ceilings. The extra cost of a better category is small next to the cost of reopening those routes later. For longer runs and high-density work, you might also look at fibre; this practical guide to planning a fibre home network is useful complementary reading.
Which standards and tests should you demand from an installer?
The specification you write is what protects you. Ask for the standards by name.
Standards to reference
In the UK and Ireland, the ECA datacomms guidance lists the British standards to use: the BS EN 50173 series for generic cabling and BS EN 50174 for cabling installation and testing. BS EN 50173-2:2018 covers generic cabling for office spaces, including performance requirements for components and channels. TIA and ISO category definitions set the component and channel performance that each category must meet.
Manufacturer-approved components
A full-system guarantee normally depends on using components from one approved system, installed by an approved installer. Loughborough University’s networking standards emphasise manufacturer-approved components and full-system guarantees with 100% testing. Mixing cable from one maker with jacks from another can void that protection, so ask which system is being used and whether the manufacturer will register the installation.
Field testing
Request permanent-link and channel certification on every run, using an accredited tester of the Fluke DSX type, and ask for the results as a report. Our own structured cabling and Fluke testing page explains how we terminate and certify Cat5e, Cat6 and fibre. A pass on every link, with the measured margins recorded, is your evidence that the installation meets the category you paid for.
Practical checks on site
Look for visible signs of care: bend radius respected, every outlet and panel port labelled, cable managed neatly and no cable ties pulled so tight that they deform the sheath. These details tell you a great deal about how the terminations behind them were made.
How do you decide, and what should you ask?
Work through this checklist before you request quotes.
- Lifetime: how many years should the cabling last without being touched?
- Speeds: what do your devices and servers need now, and what might they need soon?
- PoE: will cameras, phones or access points draw power over the cable?
- Routes and density: how many cables share each route, and over what distance?
- Shielding: is there a source of electrical noise near the routes?
- Outlets and labelling: how many outlets do you need, and will they be labelled and documented?
- Testing and warranty: which tests are included, and what guarantee follows?
Then put these questions to every installer:
- Which standard will you test to?
- Will you use manufacturer-approved components throughout?
- Will you supply test results for each run?
- What warranty or guarantee is included?
On budget, the category sets the material cost, shielding adds to both materials and labour, and testing adds time. Testing is the cost that is easiest to cut and the most expensive to regret, so keep it in scope.
Our view on cabling and testing
We believe cabling decisions are won in the specification, not on the cable drum. A Cat6 label means little until a certified test shows the installed link meets it, and an unlabelled, untested Cat5e run is a gamble whichever way you look at it. For that reason we recommend standards-compliant cabling, manufacturer-approved systems and full field-test certification on every job, and we would rather advise a customer to install plain Cat5e correctly than sell them an upgrade that is never verified. If you are unsure which category fits your building, a site survey answers it far more reliably than any article can.
— Carl
Get structured cabling installed and tested by us
If you want your cabling installed to standard and proved with test results, our team can handle the installation. We carry out structured cabling and infrastructure installation, so you can get the cabling you need.
We also support the network once it is live, through our managed support services, so cabling, switching and the devices on it are looked after by one team. Request a site survey or a quote through our structured cabling page and we will recommend the right category for your building.
FAQ
Is Cat5e better than Cat6?
No, Cat6 is the higher-performance category, with a 250 MHz specification against 100 MHz for Cat5e. Cat5e is still the better value where a gigabit link is all you need, since it delivers 1 Gbps over a full 100 m run at lower cost.
Is Cat6 overkill for home use?
Often, yes, if your devices and broadband run at gigabit speed, because Cat5e gives the same link speed. Cat6 makes sense at home when you want higher-speed links between a computer and a network storage device, or when the cable will stay in the walls for many years.
Can I use a Cat6 Ethernet cable instead of a Cat5e?
Yes, Cat6 cable is backwards compatible and will work anywhere Cat5e does. The link will perform to the weakest component in the channel, so Cat6 plugged into Cat5e jacks or a Cat5e patch panel gives you Cat5e performance.
Is Cat5e outdated?
Not for gigabit use. Cat5e is still specified to carry Ethernet and Gigabit Ethernet, and Imperial College’s specification confirms Cat5e systems must support these speeds, although Cat6a is preferred for new buildings where 10 Gbps may be needed.
